Thermal Cycling, Warpage, Expansion

DIC has the power to get data where other sensors can't, no matter the temperature



Got a question?

FLIR

FLIR brings sensing solutions through thermal imaging, visible-light imaging, video analytics, measurement, and threat detection systems.

Discover More
Flir Thermography Camera

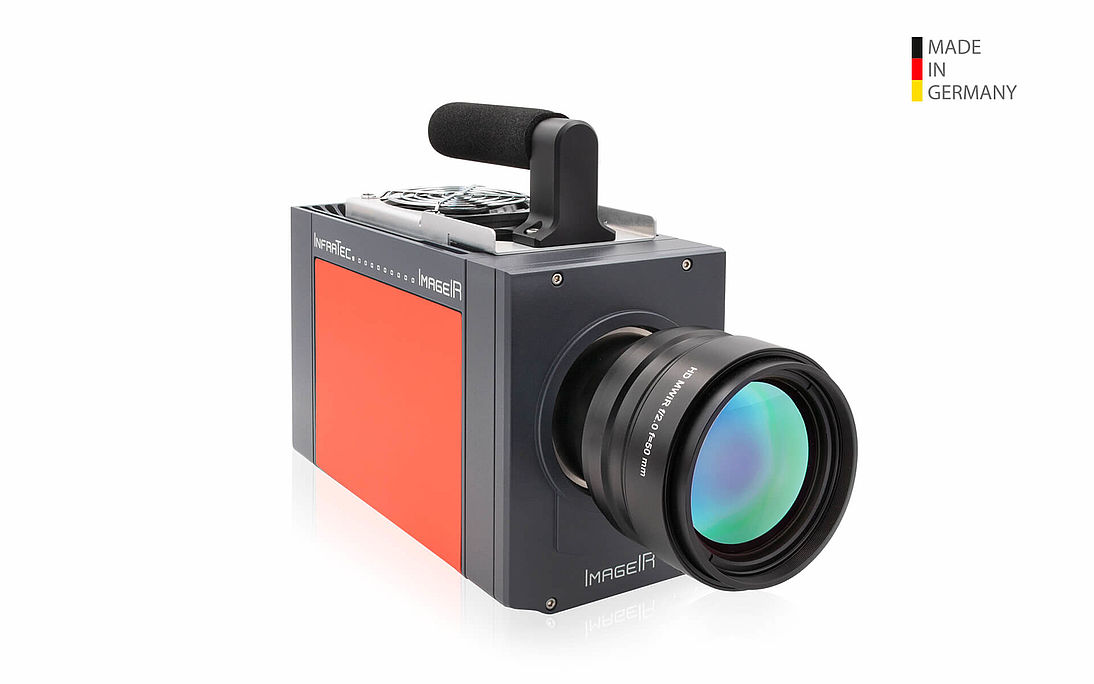

InfraTec

InfraTec GmbH offers a wide range of high-quality, innovative products and services in the field of infrared technology. With about 230 employees, they are dedicated to finding the right solution for their customers.

Discover More
Infratec camera

Telops

Telops designs and manufactures hyperspectral imaging systems and infrared cameras for defense, industrial, and research applications.

Discover More
Telops thermography camera with a yellow handle

ARAMIS Thermography

ARAMIS Thermography is unique in its ability to read full-field temperatures in 3D coordinates. This provides broad capabilities in understanding your materials, structures, and processes with cutting-edge data on material properties. Optical Strain measurement uses the changes in temperature during a test to correct the total strain measurements for thermal expansion and to measure the true mechanical strains.

The most common applications for ARAMIS Thermography are in automotive and aerospace engine testing or operations like welding, where temperature differentials play a huge part in the material and structural response.

Thermal changes and 3D necking can significantly affect your material properties. ARAMIS 3D-DIC with thermography corrects for these effects, providing highly accurate material properties. NASA used our system to measure difficult material properties of epoxy resin and then applied the same methods to their composites and metals, finding better, more consistent data for each.



Thermal Chamber

Trilion thermal chambers are capable of real-time, optical, and non-contact thermal expansion measurements for parts ranging in size from a few millimeters to several centimeters, making it the perfect tool for microelectronics testing.

ARAMIS Thermal software controls the thermal chamber operation, running it through various temperature profiles. ARAMIS is calibrated through the window of a thermal chamber. Our Real-Time-Sensor module quantifies length changes between various points on the surface of a specimen as it heats up and expands in the thermal chamber. Our customers have validated our methods, and leading companies in the industry have measured precision thermal expansion coefficients of various custom materials.

This fully integrated solution for oven measurements provides accurate results on many applications, such as fatigue caused by thermal cycling. The thermal oven is internally illuminated to allow the cameras to see through the oven’s factory custom-designed windows to the test part held by a special specimen holder. Our thermal software provides full-field and temporal processing to reduce noise at higher temperatures.

Request technical information

ARAMIS thermal chamber for real-time thermal expansion testing



Aramis Thermography data on tensile test

ARAMIS Thermography with 3D DIC

Download application note
Thermal expansion measurement of large scale system

Thermal expansion measurement

Download application note

Product highlight

InfaTec's Variocam HDx 600 shows its strength wherever there is a need for fixed installation in harsh industrial environments or laboratory tasks require computer-based support. Compact housing dimensions and minimal weight allow easy integration into existing system environments.

Discover the VarioCam HDx

InfaTec Variocam HDx 600

Find out more

2 min read

Using Digital Image Correlation for Jet Aircraft Engine testing

Throughout our history, Trilion Quality Systems has helped customers in the aerospace industry to obtain the best...
1 min read

Finite Element Measurements for Reality in Composites

ABSTRACT Optical metrology is fast becoming the measurement method of choice because of its great advantages over its...

ARAMIS Thermography Applications

These Digital Image Correlation applications are starting to heat up🔥! Watch how ARAMIS Thermography can still get...
