ARAMIS Digital Image Correlation


Headache-free displacement measurement

That's right, optical metrology can be integrated into existing test environments, test benches, and testing machines quickly and effectively since it is non-contact and can measure 3D coordinates of any point in the CAD coordinate system. That means you can add dozens of data points to a test without tedious mounting of a reference structure for LVDT or worrying about cable friction and wire contact for string pots.

Find out more

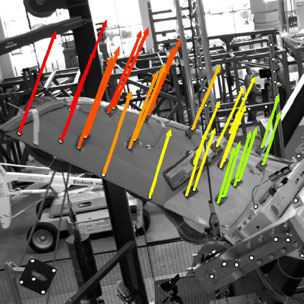

Wing load being measured with the ARAMIS Optical strain system


Combine point cloud scanning with motion tracking

Thanks to GOM's photogrammetry technology, you can build a complete point cloud of an object or part and then track its motion in 360° as it rotates in and out of the measuring volume. No need to build it all from a single reference stage. All in a single software interface.

360 point cloud tracking
Powered By the GOM SUITE

THE ULTIMATE SOFTWARE FOR PRODUCT DEVELOPMENT

Learn More


Technology

Capture a 360° geometry of a rigid body and identify the part as it comes and goes into the field of view of your stereo-imaging measurement. Or use the point cloud to build a relevant local coordinate system using features that are not visible in the reference image of a project.

Using the ARAMIS software point cloud to build a relevant local coordinate system using features that are not visible in the reference image of a project.

Showing how the ARAMIS software can automatically locate the sensor position and align multiple data sets together with a shared coordinate system.

Automatically locate the sensor position and align multiple data sets together with a shared coordinate system. Useful when multiple point of views are necessary.

The live functionality allows online measurements and online positioning. It is supported when measuring with GOM Touch Probes and GOM Adapters so that components can be specifically aligned and positioned to the CAD in an online measurement.

Need to track a specific geometry like the center of hole? Transform any tool into a Smart Tool by making it an Adapter. It offers expanded options for the live measurement such as component positioning or the measurement of geometrical elements and edges.



Smart Tool positioning

The stereo camera system provides precise 3D coordinates of reference point markers. The preset and certified lenses are integrated into an industrial housing, leading to high stability with fewer requirements for sensor calibration. Users can easily change the measuring volume and thus measure small to large objects.

GOM TOUCH PROBE

The GOM Touch Probe is a tactile add-on for measuring systems, which is optically tracked by the system. It is used for tactile measurements and allows measuring coordinates even in areas that are difficult to access.

Mobile Optical 3D Measuring System for Online Photogrammetry

ARAMIS Optical Motion is GOM’s solution for positioning components, as for a precise alignment on CNC machines or for the adjustment of fixtures. Combined with the GOM Touch Probe, and previously known as PONTOS Live, the GOM Suite allows the inspection of areas that are optically difficult to access.

Based on the triangulation principle of photogrammetry, our system analyzes components of different sizes – from a few millimeters up to several meters – point by point and regardless of the material.

GOM_PONTOS_Live-Mobile_and_Flexible_Shop_Floor_CMM_1080p



PONTOS_Live_1080p_mp4
