ATOS Q Scanner Versatile, Accurate, Quality Inspection, Portable, Fast, Powerful, Precise

Fast 3D Inspection

RESULT BASED

Next-Generation Product Testing And Measurement

Trusted by Fortune 500 companies across a dozen industries.

Digital Image Correlation data on car part


Take Advantage of the Triple Scan Principle

ATOS Q uses a 3-in-1 sensor design. The right and left camera interact with the sensors to create one precise measurement.

The Triple Scan Principle of the ATOS Q two cameras and one sensor

Take a look at the Scanner

Technology

ATOS Q captures high-detail data. Our Triple Scan Tech is helpful for measuring reflective surfaces and indented objects. The Blue Light System provides bright, uniform, and speckle-free light projection.

Mechanical engineer holding an ATOS Q scanner

Performance

With help from the Blue Light Equalizer and fast data processing, ATOS Q provides high-level performance. The Blue Light Equalizer enables high-speed fringe projection and powerfully handles uncooperative surfaces with short measuring times. It allows for high data throughput with industrial ports for fiber optic cables and robust plug-in connections.

Male engineer setting up the ATOS Q on a robotic arm

Design

Designed for industry use, the ATOS Q provides fully trackable measuring results. The powerful optical 3D sensor are dust and splash proof, making them suited for the shop floor.

An active ATOS Q attached to a robotic arm


Features

Versatile

ATOS Q is versatile with Manual, Semi, and fully-Automated modes. Semi-automated mode works with a tripod, rotation table, etc..

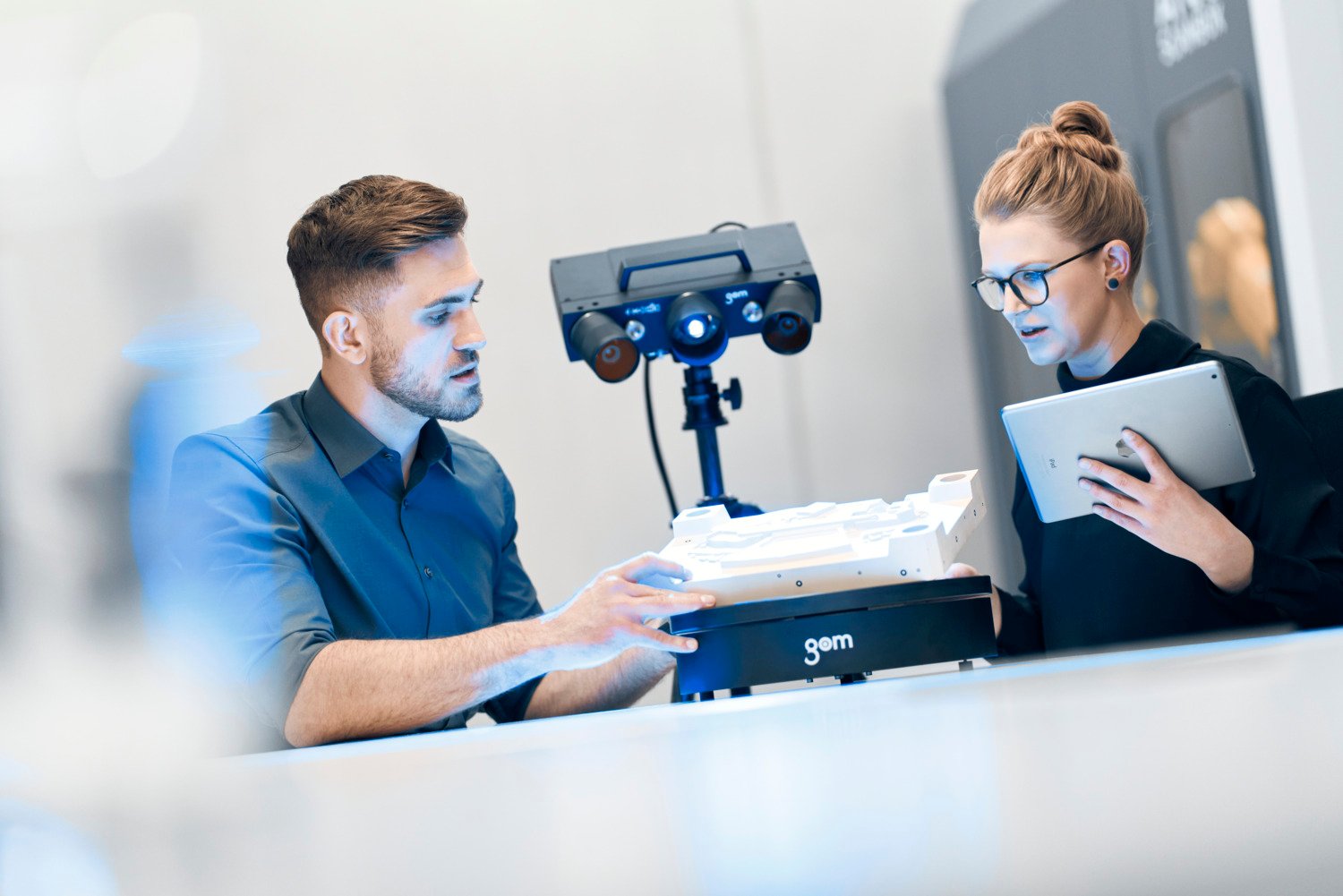

Two Trilion engineers use the ATOS Q on a plastic part

Blue Light Technology

ATOS Q projects a precise fringe pattern on the surface of the object, which is captured by two cameras. The projection uses narrow-band blue light, which filters out ambient light during image acquisition.

Complex Part being Scanned in detail by the ATOS Q scanner

Designed for Quality

ATOS Q is designed to work on complex parts and inspection tasks in multiple industries. Using inter-changeable lenses ensures high-quality measuring of small to medium-sized parts.

Heads on shot of the ATOS Q scanning an additive manufactured part

Portable

At under 10 pounds, ATOS Q is simple to move around the lab and easy to pick up or attach to a tripod, desk stand, etc.. It's compact size allows it to fit in a small case and travel to the test site.

ATOS Q being put in it's portable black carrying case

WE NOW OFFER ATOS Q SCANNING SERVICES

CONTACT US TO GET STARTED

Learn More

ATOS Q MODELS

Discover which one best fits your scanning needs.

  ATOS Q 8M ATOS Q 12M
Light source LED LED
Points per scan 8 million 12 million
Measuring area [mm²] 100 x 70 - 500 x 370 100 x 70 - 500 - 370
Point distance [mm] 0.04 - 0.15 0.03 - 0.12
Working distance [mm] 490 490
Weight Approx. 4 kg Approx. 4 kg
Dimensions Approx. 340 mm x 240 mm x 83 mm Approx. 340 mm x 240 mm x 83 mm
Cable length 10 m fiber optic cable 10 m fiber optic cable
Operating system Windows 10 Windows 10
Measuring volumes 100, 170, 270, 350, 500 100, 170, 270, 350, 500
Software GOM Inspect GOM Inspect
