GOM Scan 1 Small, Blue Light, Precise, Big Ideas, Mobile, Powerful, Self-Monitoring,

The Next Small Thing

RESULT BASED

Next-Generation Product Testing And Measurement

Trusted by Fortune 500 companies across a dozen industries.

Digital Image Correlation data on car part

Highlights

Powerful scanner

GOM Scan 1 features a compact shape and robust design. The Blue Light Technology and the stereo camera allow the sensor to deliver high precision 3D data.

Electrical engineer scanning object with the GOM Scan 1

Small, mobile, and super easy to use

The lightweight solution allows you to capture 3D data intuitively. Easy to operate, GOM Scan 1 is the specialist for simple and fast measurements of small to medium-sized parts – even in confined spaces.

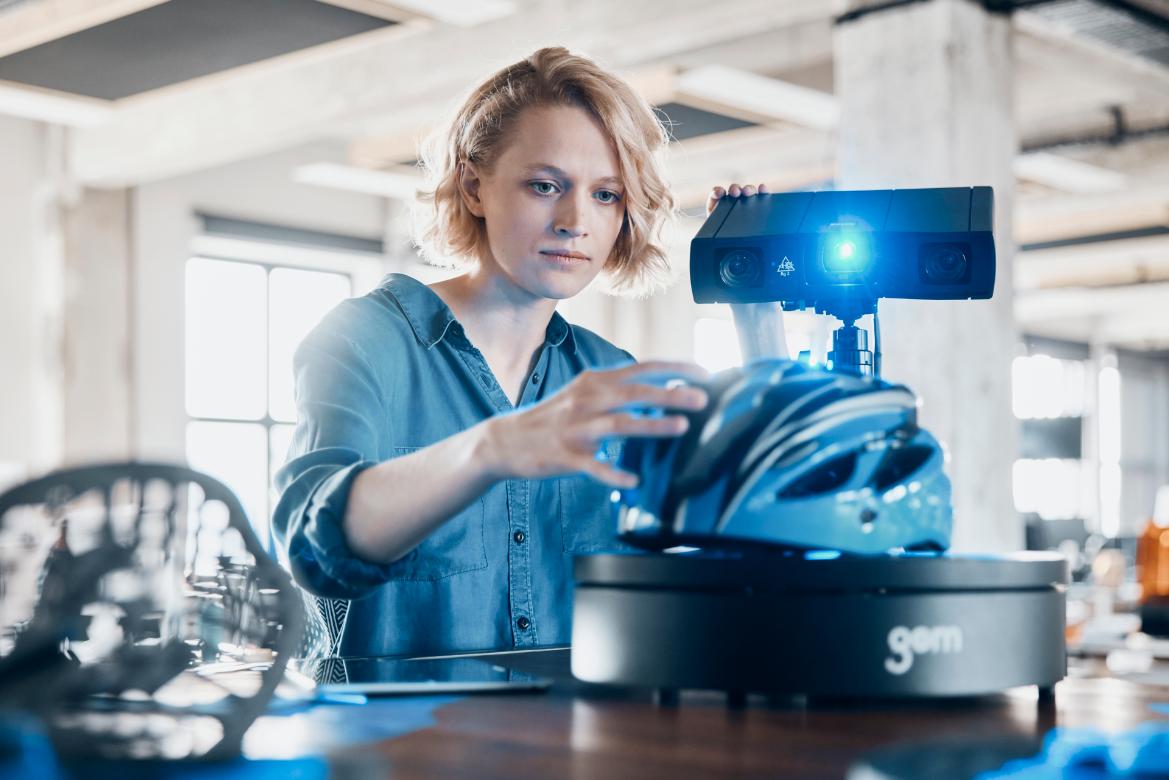

Female engineer setting up the GOM Scan 1

Fast and Precise

GOM Scan 1 with pre-installed GOM Inspect takes meshes to the next level. You can rely on high-quality data, generate precise meshes, and get your 3D data easily and fast.

Female engineer explaining important scan data in the GOM Scan 1 software of a 3D part to a male engineer


Features

Choose your measuring volume

GOM Scan 1 is available in three versions with the measuring volumes: MV 100, MV 200 and MV 400. With all three sensors you can rely on high-precision measurements for small to medium-sized objects.

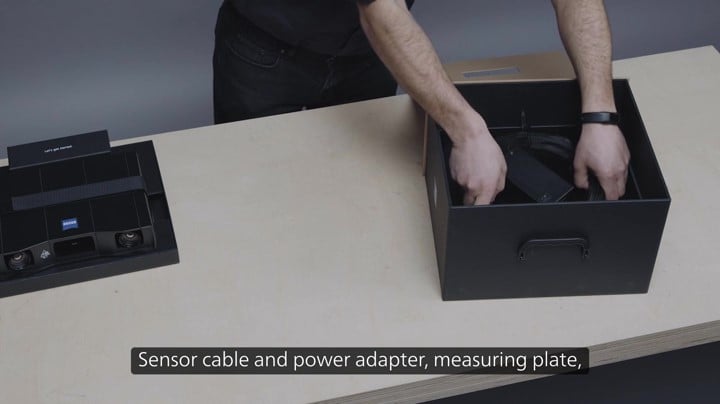

Engineer unboxing the powerful GOM Scan 1 system

Fringe Projection

GOM Scan 1 is an optical 3D fringe projection scanner. It captures the complete surface of components with blue fringe projection and delivers detailed resolution in no time.

Complex Part being Scanned in detail by the GOM Scan 1

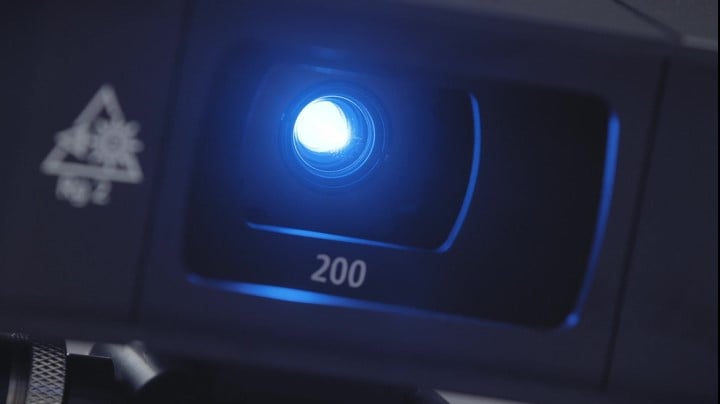

Blue Light Technology

Since the sensor works with narrowband blue light, interfering ambient light can be filtered during image acquisition. Due to its powerful projection unit light source, short measuring times can be achieved with high precision.

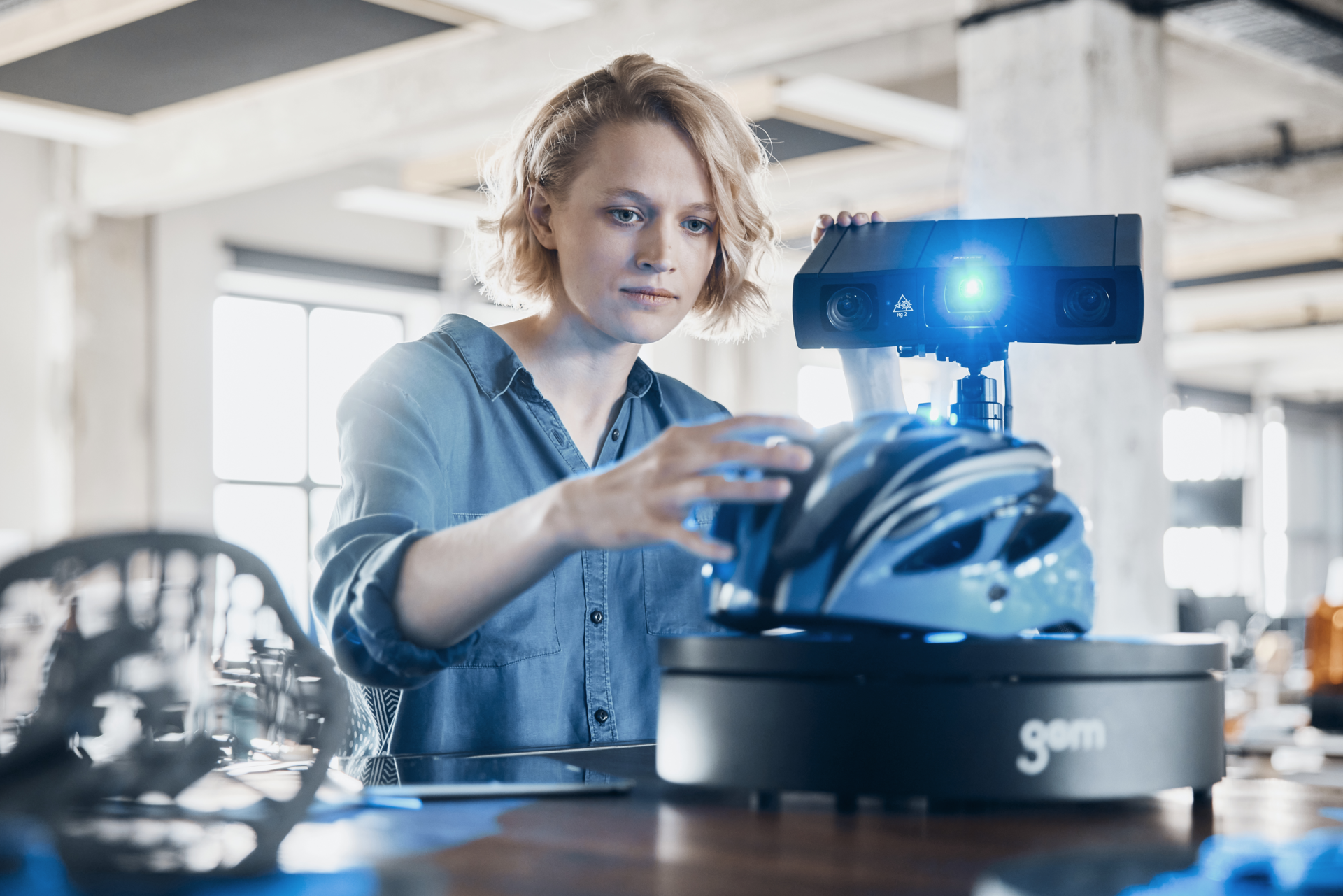

Female mechanical engineer scanning a complex part with the GOM Scan 1

Self-Monitoring

Due to the stereo camera principle, the sensor recognizes changing ambient conditions during operation and can compensate for these changes. To ensure the quality of the measuring data, the sensor's software continuously monitors the sensor status.

Two engineers using the GOM Scan 1 to scan a complex part
Powered By the GOM SUITE

THE ULTIMATE SOFTWARE
FOR PRODUCT DEVELOPMENT

Learn More

Technical Specifications



  GOM Scan 1 (100) GOM Scan 1 (200) GOM Scan 1 (400)
Points per scan 6 million
Point distance 0.037 mm 0.060 mm 0.129 mm
Measuring area 100 x 65 mm² 200 x 125 mm² 400 x 250 mm²
Working distance 400 mm 450 mm 500 mm
Light source LED
Weight approx. 2,5 kg
Dimensions 290 x 215 x 80 mm³
Cable length 5 m
Connection USB 3
Operating system Windows 10
Software GOM Suite
