Zeiss Metrotom Precise, Simple, Accurate, Resolution

Non-destructive computed tomography volume inspection

RESULT BASED

Next-Generation Product Testing And Development

Trusted by Fortune 500 companies across a dozen industries.



DIC data on car part


Take X-Ray Measurements and Inspections to the next level

The Zeiss Metrotom CT scanners will take your measurements and inspections to the next level. With only one x-ray scan, you're guaranteed the highest level of precision with sophisticated calibration to ensure the traceability of the system.

The Zeiss Metrotom is an industrial computed tomography system for measuring and inspecting complete components made of all materials. With traditional measuring technology, hidden structures can be inspected after the time-and-cost consuming process of destroying the component layer-by-layer, but this CT scanner removes that barrier to measurements.

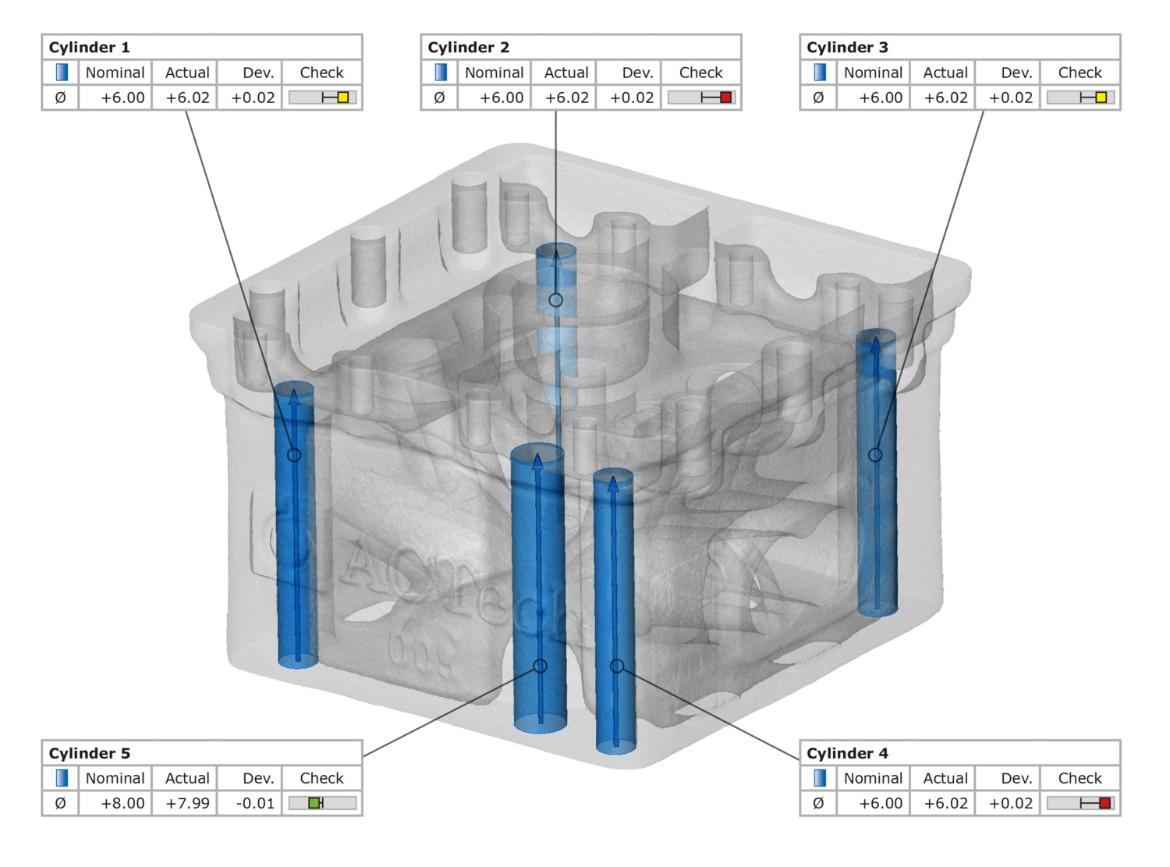

Computed tomography image of a complex 3D part


Precise, Easy and Fast

Numerous component characteristics are scanned in one run with the CT scanner. The resulting measurements are precise and traceable. Unlike contact measuring methods, Zeiss Metrotom is significantly faster when capturing numerous measuring points.

The accompanying GOM Volume Inspect is an easy-to-use analysis software for complete CT data analysis in 3D Precisely analyze geometries, shrinkage holes, or internal structures and assemblies. Uncover even the smallest defects through individual sectional images.

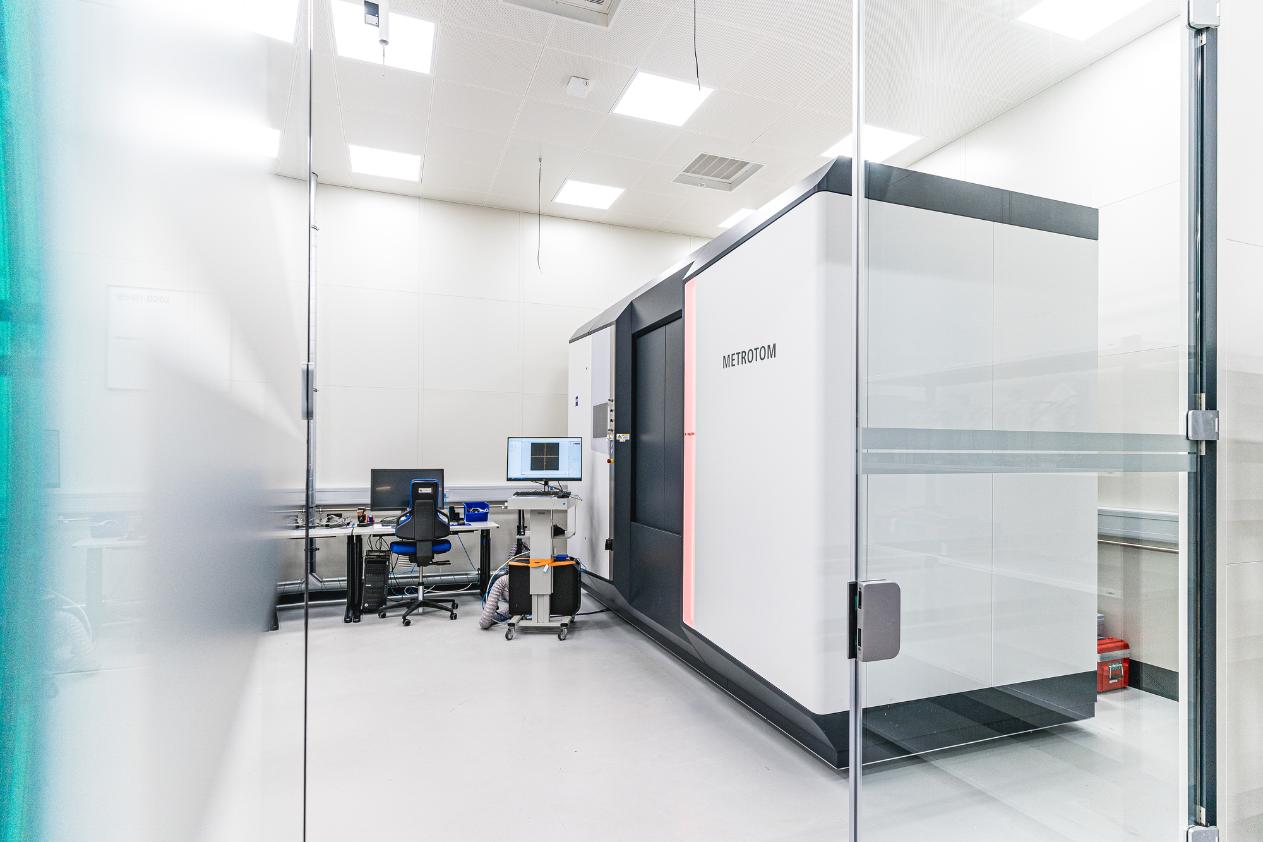

ZEISS METROTOM in a Metrology lab

Inspect the invisible in one go

We Also Offer CT Scanning Services!

Zeiss Metrotom 1

Surprisingly compact, the Metrotom 1's dimensions are 1750 mm (W) x 1820 mm (H) x 870 mm (D) and fits into any metrology lab. Carry out in-house measurements and quality assurance without external measuring services.

Zeiss Metrotom 1 Model for Computed Tomography

Zeiss Metrotom 6 Scout (GOM CT)

Scan parts, especially plastics, at the highest level of detail. Get a complete 3D image for GD&T analysis or nominal-actual comparisons. Enjoy automatic object positioning, quality precision, & all-in-one GOM Volume Inspect software.

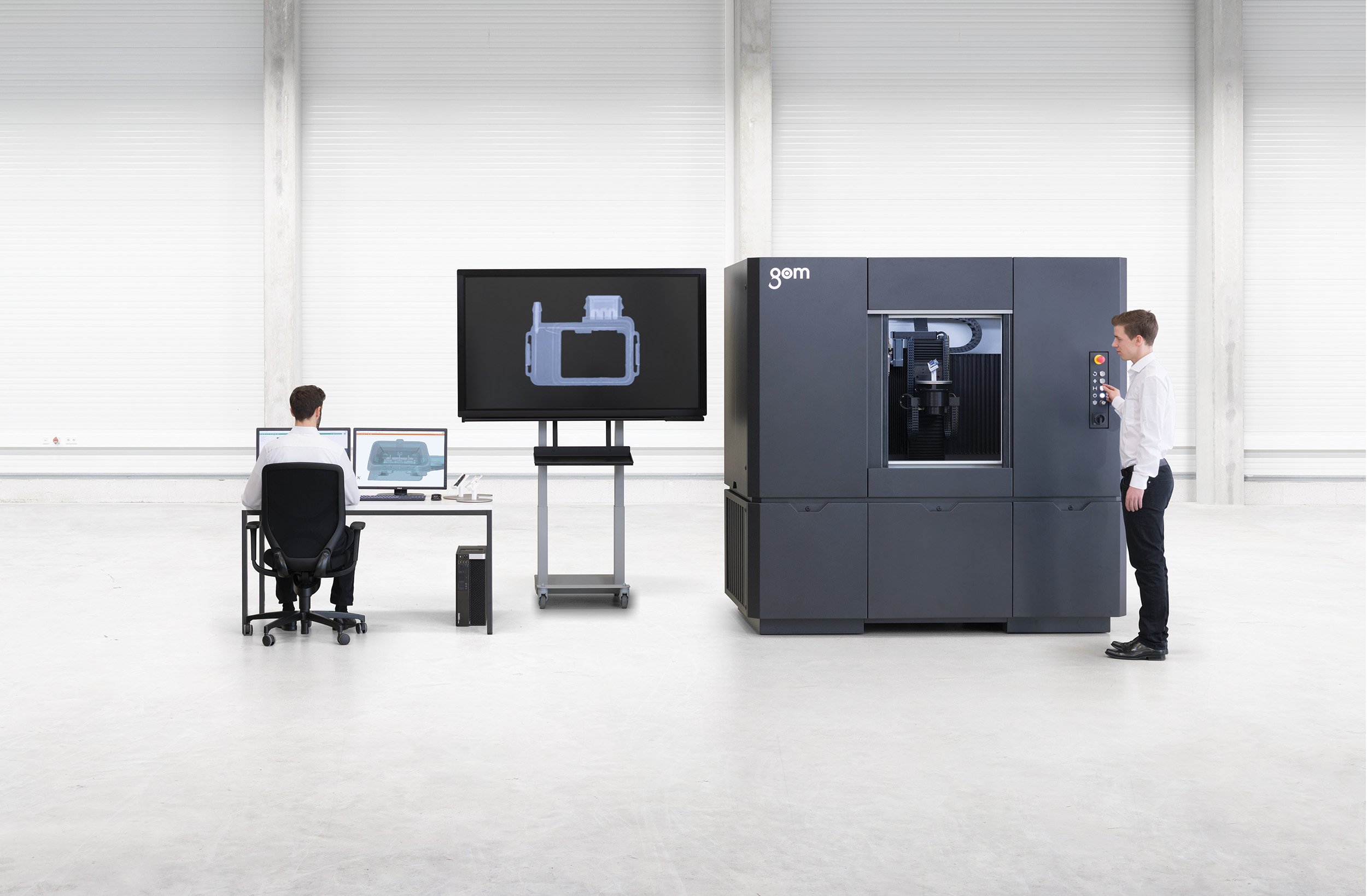

GOM Computed Tomography Metrotom 6 Scout

Zeiss Metrotom 800 225 kV

The 800 model offers a significant increase in power from 39 to 500 watts, which means metal components, mixed materials, and hybrid workpieces can be scanned. The increased volume allows for x-ray scanning of larger parts.

Zeiss Computed Tomography Metrotom 800 225 kv Model

Zeiss Metrotom 1500

The third generation CT model offers the highest resolution yet, scans faster and allows for measurement of larger parts with the extended measuring volume.

Zeiss Computed Tomography Metrotom 1500 Model

Computed Tomography Models

Learn what makes each model unique and which one will fit your needs.

  Zeiss Metrotom 1 Zeiss 6 Scout (GOM CT) Zeiss Metrotom 800 225 kV Zeiss 1500
Part Size ✔️✔️ ✔️✔️ ✔️✔️✔️ ✔️✔️✔️✔️
Part Density ✔️✔️ ✔️✔️✔️ ✔️✔️✔️ ✔️✔️✔️
Part Mass ✔️✔️✔️ ✔️✔️✔️ ✔️✔️✔️ ✔️✔️✔️✔️
Part Accuracy ✔️✔️ ✔️✔️✔️✔️ ✔️✔️✔️ ✔️✔️
Resolution ✔️✔️ ✔️✔️✔️✔️ ✔️✔️✔️ ✔️✔️✔️✔️
Speed ✔️✔️ ✔️✔️ ✔️✔️✔️✔️ ✔️✔️✔️✔️
Footprint ✔️✔️✔️✔️ ✔️✔️✔️ ✔️✔️ ✔️
Model Specs More Info More Info More Info More Info

Uncover Hidden Defects

Using Computed Tomography (CT) provides the ability to uncover small interior defects, cavities, warpage, cracks, and more in a layer-by-layer breakdown of any metal or plastic part.

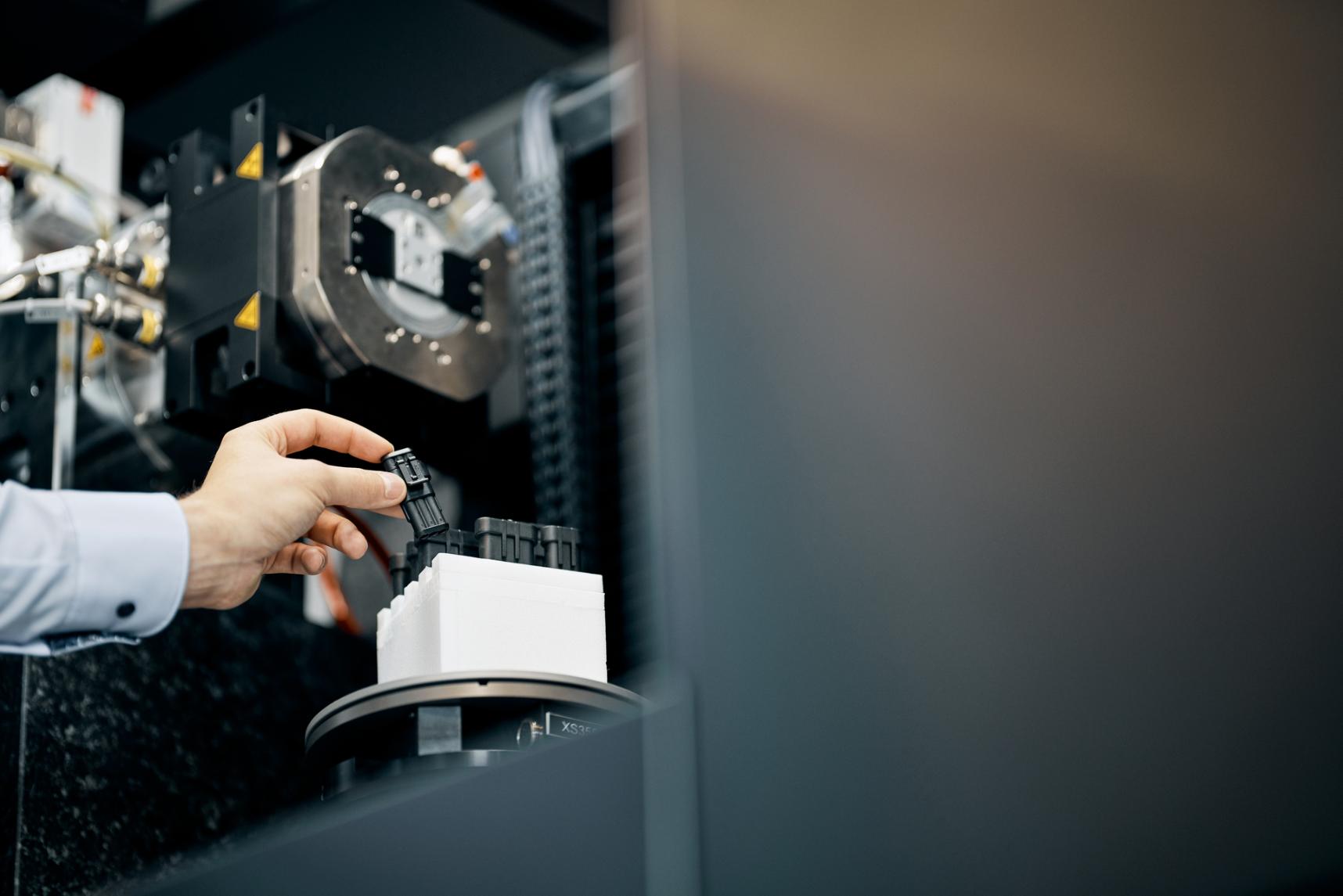

GOM CT used on a small 3D printed part for tolerance inspection

Precise measurements

Measure and evaluate complete parts. This allows you to perform accurate nominal/actual comparisons, dimensional checks, and wall thickness analysis with the confidence that you can rely on your measurements.

Inspecting part after it was scanned with the GOM CT

Fast Return-on-Investment

In addition to low acquisition costs, the cost of ownership is also kept to a minimum thanks to the low-maintenance system and since the Metrotom 1 tube does not need to be maintained when in operation.

analyzing the GOM CT data in the inspect software
Powered By the GOM SUITE

THE ULTIMATE SOFTWARE
FOR PRODUCT DEVELOPMENT

Learn More

Want to learn more?



Our team can discuss and demonstrate most of our products and applications virtually to you today!
