ARAMIS 3D High-Speed combines high-speed cameras with the power of the ARAMIS Optical Strain software to measure components at any speed, for high strain rate materials testing, vibration analysis, and impact testing, from thousands to millions of frames per second (fps). Standard ARAMIS high-speed cameras run at 6Kfps and up to 50Kfps, while ultra-high-speed cameras can go up to 5Mfps.

Adidas Shoe







ISO Drop testing (1K-20K fps) helps consumer goods designers test for reliability. Micro-electronics companies use ARAMIS Optical Strain to measure the dynamic behavior of dropped components (6 DOF, acceleration…) and their 3D deformation during impact, based on current industry standards.

mobile_phone (2)







Impact & Crash testing (5K-50K fps) from automotive and aerospace crash tests to sports helmets design requires data acquisition in thousands of FPS. Full-field measurements of acceleration, displacement strains, and buckling with ARAMIS High-Speed can rapidly generate meaningful data for engineers without installing any contact sensors.

Media1







Ballistic & Blast testing (20K-300K fps) has been an early adopter of high-speed imaging. The ARAMIS High-Speed system turns your high-speed cameras into 3D sensors, capable of measuring thousands of data points during highly dynamic events. This picture shows the dynamic response of a military helmet during ballistic impact.

helmet impact fixed scale with readout points revised









Shock & Brittle Fracture (100K-5M fps), including Split-Hopkinson Bar material testing, requires ultra-high acquisition rates of 100K - 5M fps. In this example, a bullet impacts glass, showing strain concentration during the crack propagations (recorded at 1Mfps).

1507940147251-drlcss2



Back Face Deformation (BFD) Testing

An important consideration for armor ballistic performance is not only to stop the penetrator but also the amount of back face deformation or the deflection of the armor material on the back surface. Even though the armor may defeat a threat projectile, the rear face deformation can cause other damage, for example, blunt force trauma to a person wearing an armored vest or a helmet.

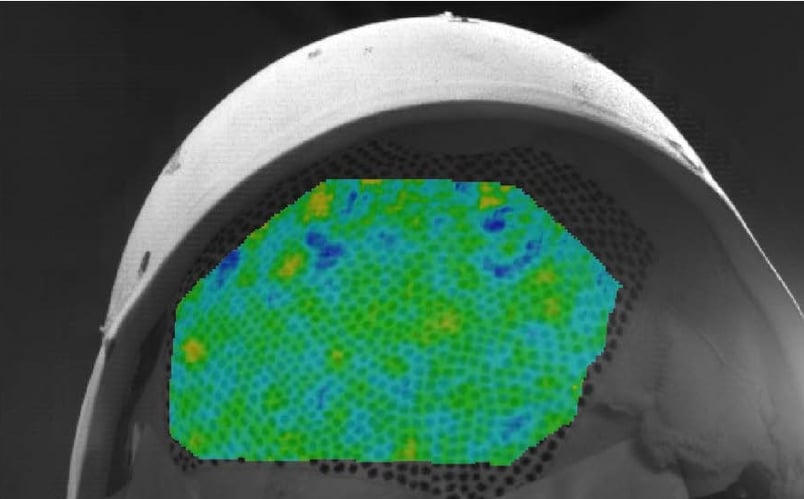

ARAMIS DIC technique was able to track and accurately determine the back face deformation of different helmet structures and order their ballistic performance.
